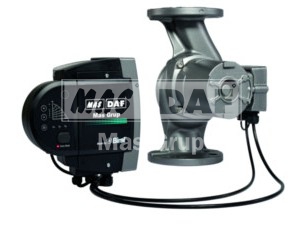

Modul A Green Series
EXPLANATION :
Circulation pumps marked "Eco Design" save up to 80% electricity. Old-type pumps replaced by Mas's ModulA pumps cost a short time.
ModulA series is in the category of iyle Best in Class ≤, which is the highest category with İy0,17 EEI value. Productivity class D provides energy and cost efficiency of over 80% compared to conventional uncontrolled pumps.
With the Interface Module, your pump can be easily and optimally integrated into any building control system for today's requirements and future needs. The remote adapter has Wi-Fi capability and allows wireless communication between smart phones and pumps.
The user-friendly pumps have simple and clear control buttons and illuminated displays.
The optimum operating modes against various operating conditions can be easily controlled via Proportional Operating Pressure (PP) control, constant operating pressure (CP) control and constant speed (CS) via the control panel.
For the cold environment, together with ModulA Green, the frequency converter is included in the socket. This prevents the formation of condensation on electronic components, and offers reliable operation and long life.
Whether it's heating circulating pumps, air conditioning / cooling application pumps or mains water pumps, the ModulA pump family offers a suitable solution for almost all performance categories and areas of use.
Silent operation is ensured thanks to the non-abrasive, precision flat bearings, and the service life of the pump is prolonged. The high temperature resistance of the winding extends the service life of the pump and allows the pumping of fluids at high temperatures.
The improved water inlet ensures immediate lubrication of the bearings in the rotor compartment and no need to bleed during commissioning in small pumps.
An automatic pressure control provides extra savings in variable flow rates.
There is a power limitation that can be disabled or activated.
There are automatic night mode that can be activated.
Scope of application
Air conditioning:
Chiller Water
Cooling Towers
surface coolers
Fancoils
Floor and ceiling coolers
Cooling;
Food storage tanks
High-ceiling warehouses
Cooling chambers of computer rooms
Wine cellar cooling
Cooling of butchers and furnace warehouses
TECHNICIAL SPECIFICATIONS :

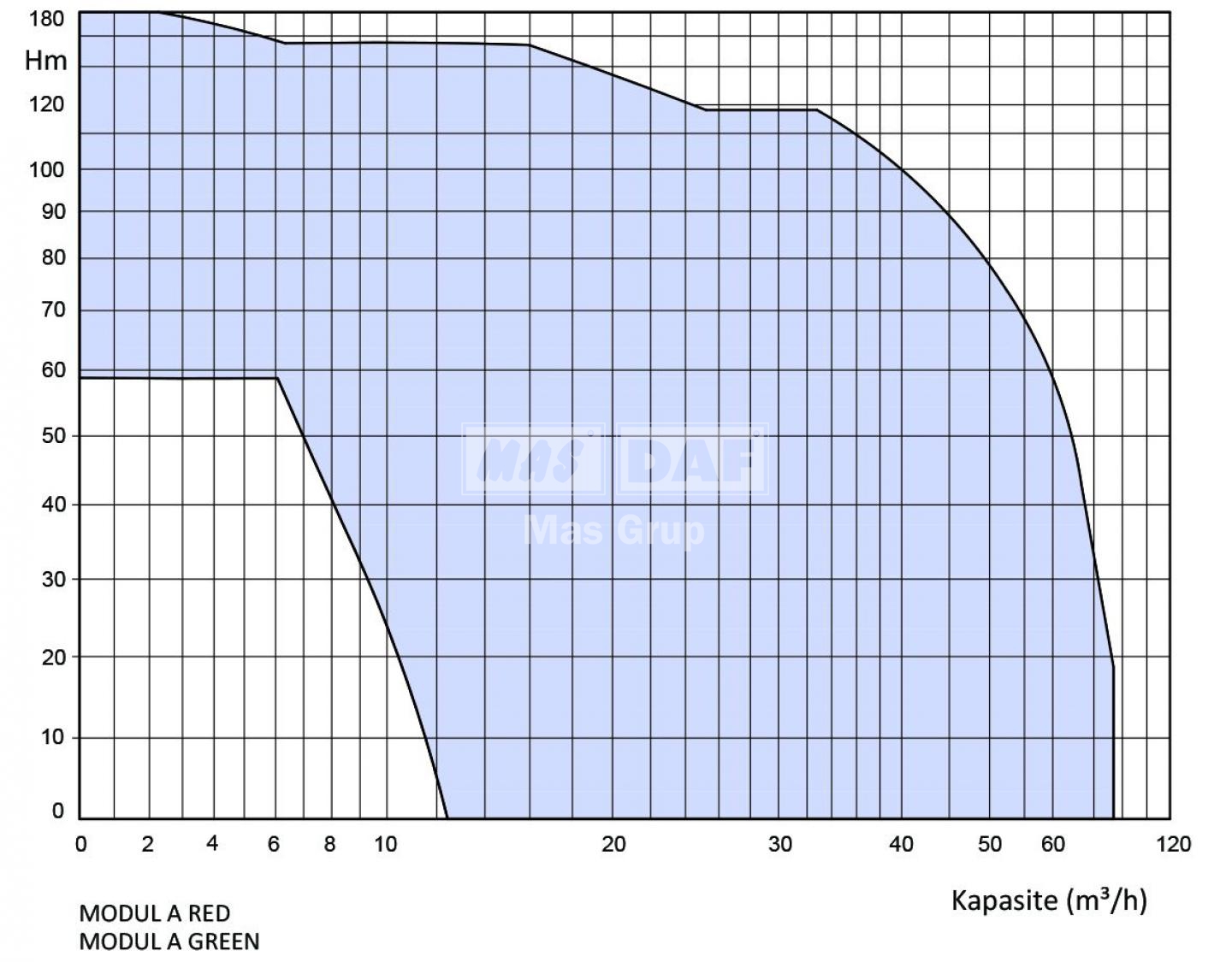

Flow Range (m³ / h): 0 ... 75
Manometric Height Range (m): 6-18
Working Pressure (bar): 6-16
Fluid Temperature (° C): -10 ... 110
EEI: ≤0,17 - ≤0,19
Suction Flange: DN 40 ... DN 100
Pressure Flange: DN 40 ... DN 100
Connection Type: Flanged
