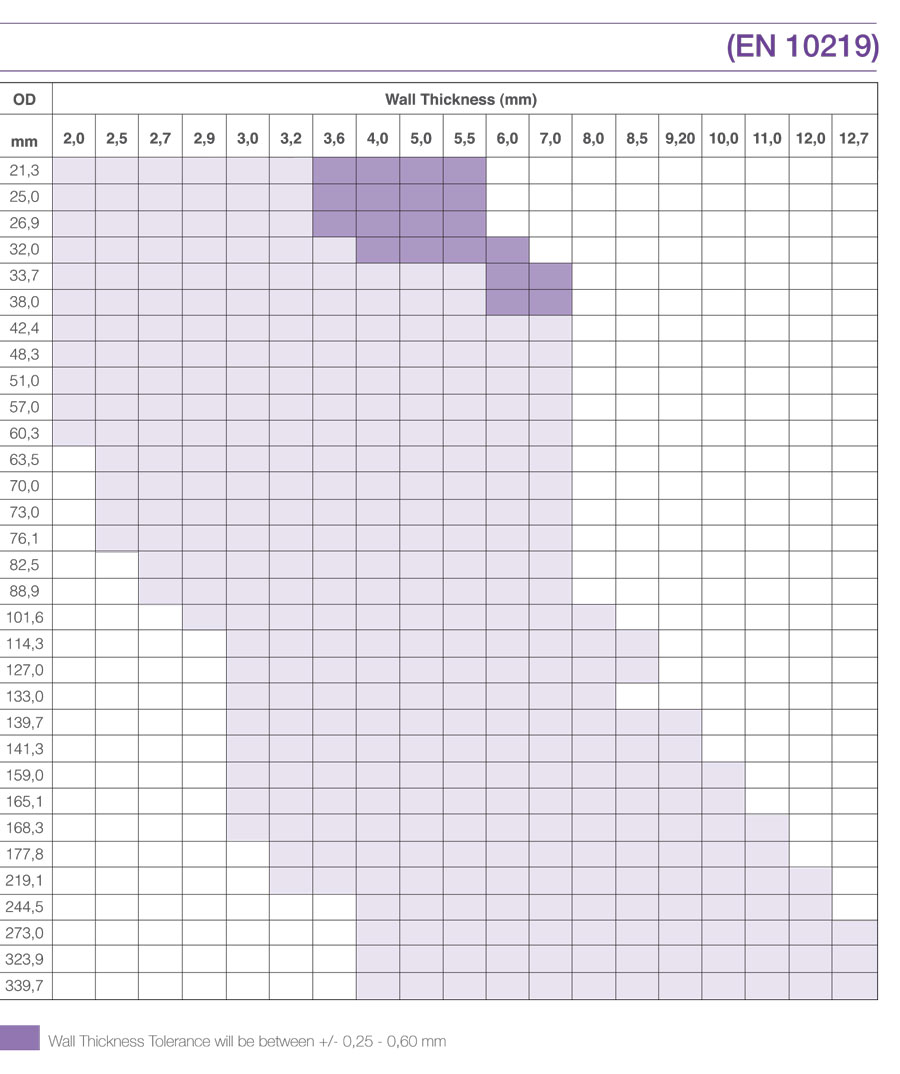

For Circular Hollow Sections
• Outside Diameter
21,3 mm - 339,7 mm
• Wall Thickness
2,0 mm - 12,7 mm
• Length
4,5 m - 12,0 m

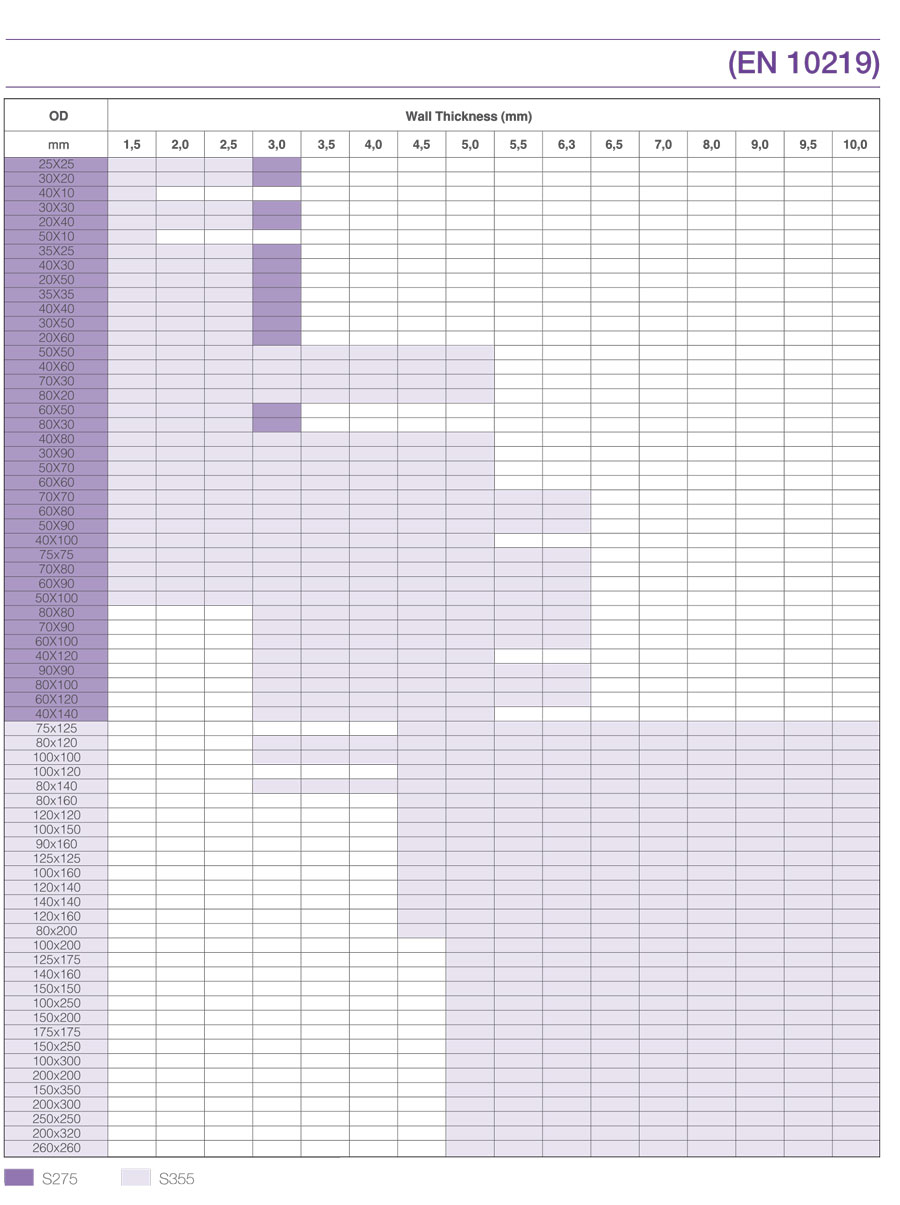

For Rectangular Hollow Sections
• Outside Diameter
15 mm x 15 mm - 350 mm x 150 mm
• Wall Thickness
1,5 mm - 10 mm
• Length
6,0 m - 12,0 m
Construction, light ad heavy duty machinery, scaffolding, automative, furniture
EN 10305-5 E 195, E 235, E 275, E 355
BS 6363 / EN 10219-2 GR 34/26, GR 43/36
BS EN 10029 GR 43 C
ASTM A 500 GR A, GR B, GR C
NF A 9-643
EN 10219 S 235, S 275, S 355, S 460 MH, NH (J0H, JRH, J2H, K2H)
EN 10210 S 235, S 275, S 355
• Visual and Dimensional Inspection
• Mechanical Tests:
Tensile Test
Flattening Test, Flaring Test
Expanding Test
Impact Test
• Metallographic Examination
• Chemical Analysis
• Non Destructive Inspection: In-Line Ultrasonic
(weld check)
In-Line Eddy Current (for round tubes)
• Mill Test Certificates
- According to EN 10204 2.1; 2.2; 3.1; 3.2
• NDT Standards
- E/C (EN 10246-3 Level E3)
• Quality Certificates
- CE marked
Plain End-Square cut or bevelled. Black, self-colored/uncoated
Mill protective coating; for both round,square and rectangular tubes, black varnishfor outside surface of round tubes.
